CAT D6N LGP

SOLD
"

MACHINE KEY DETAILS

Make:
CATERPILLAR
Model:
D6N LGP
Stock No:
70465
Year:
2014
Hours:
3500
Location:
SOUTHAMPTON
Weight:
17,380 KG
HP:
170 HP
Back to Previous Stock
Download inspection Report Download Images Compare Machine

Request Video Call?

Why not have a video call with the qualified technician that carried out the full inspection so they can run you through all the details of the machine

Request a call

View Full Inspection Report

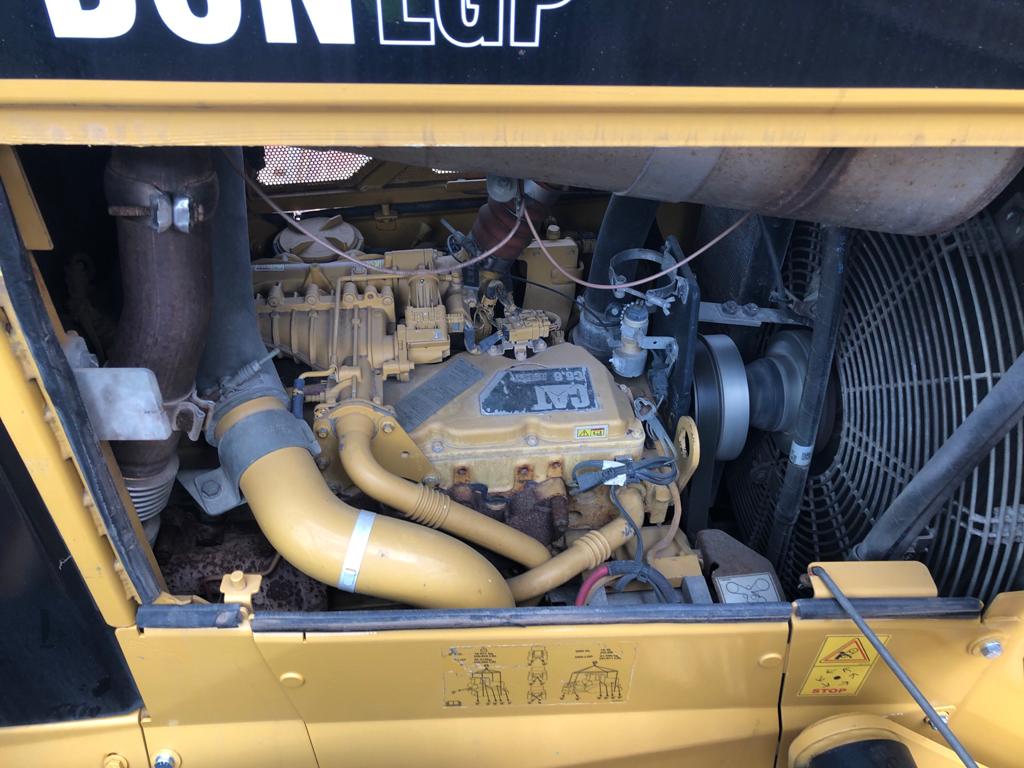

ENGINE
ENGINE MODEL
C6.6
ANY SMOKE
NO
TRANSMISSION
GEAR CHANGE
OK
STEERING
OK
Oil leaks
OK
IS THE TRANSMISSION NOISY?
NO
TORQUE CONVERTER
OK
CONTROLS
OK
GENERAL RUNNING CONDITION
GOOD

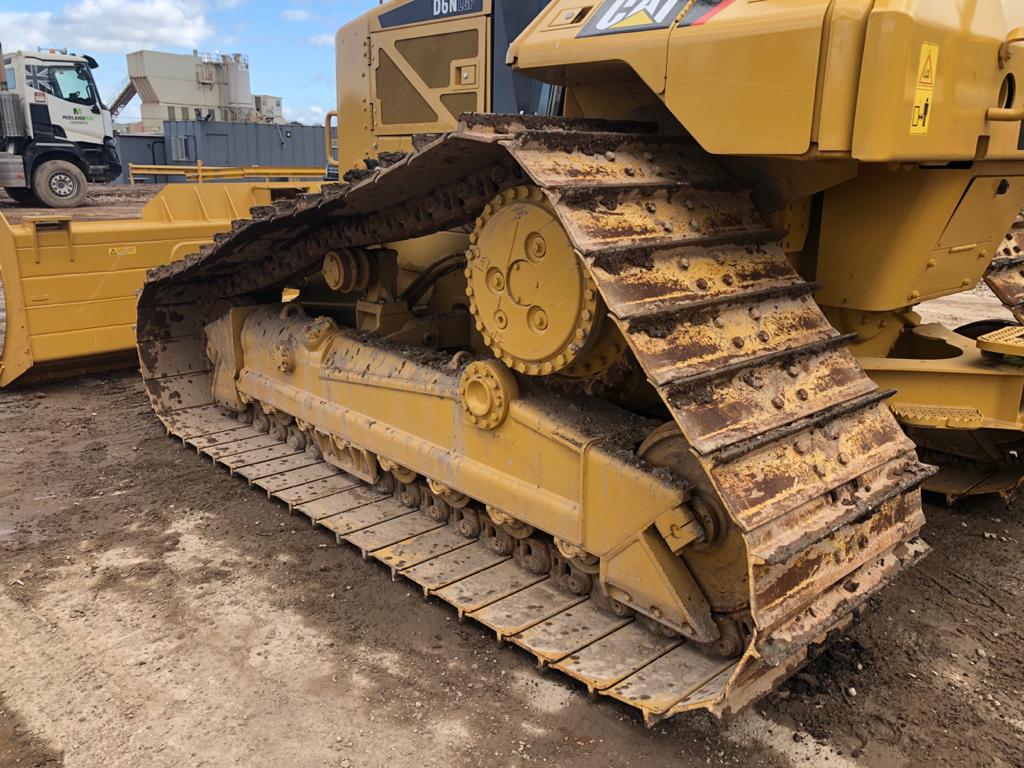

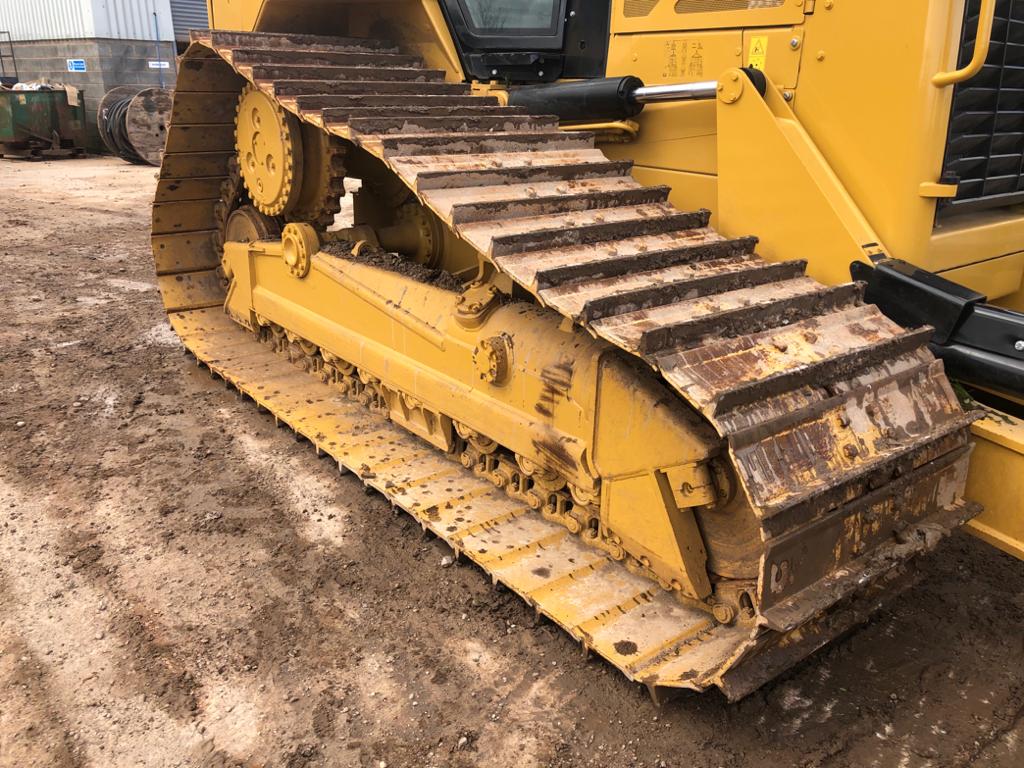

U/C
TRACK PADS
100% - NEW
SPROCKETS
100% - NEW
CHAINS
100% - NEW
TOP ROLLERS
100% - NEW
BOTTOM ROLLERS
100% - NEW
IDLERS
100% - NEW
CAB
CAB MOUNTS - ANY WEAR?
NO
ANY WIRING FOR LASER SYSTEM?
YES
BACK UP ALARM
LOUD AND CLEAR
BATTERY ISOLATOR SWITCH
YES, NEW
LIGHTS
GOOD
WIPERS
GOOD
HEATER
GOOD
A/C
GOOD
SEAT CONDITION
FAIR
CLADDING CONDITION
GOOD
FLOOR MAT
GOOD
SEAT BELT
GOOD
MIRRORS
GOOD
HORN
LOUD AND CLEAR
CAB MOUNTS
GOOD
CAB GLASS CONDITION
FEW SCRATCHES ON DOOR WINDOWS
CAB GLASS ANY CRACKS
NO CRACKS
ANY PERSPEX FITTED
NO
STEPS AND GRAB HANDLES SECURE?
YES
BLADE

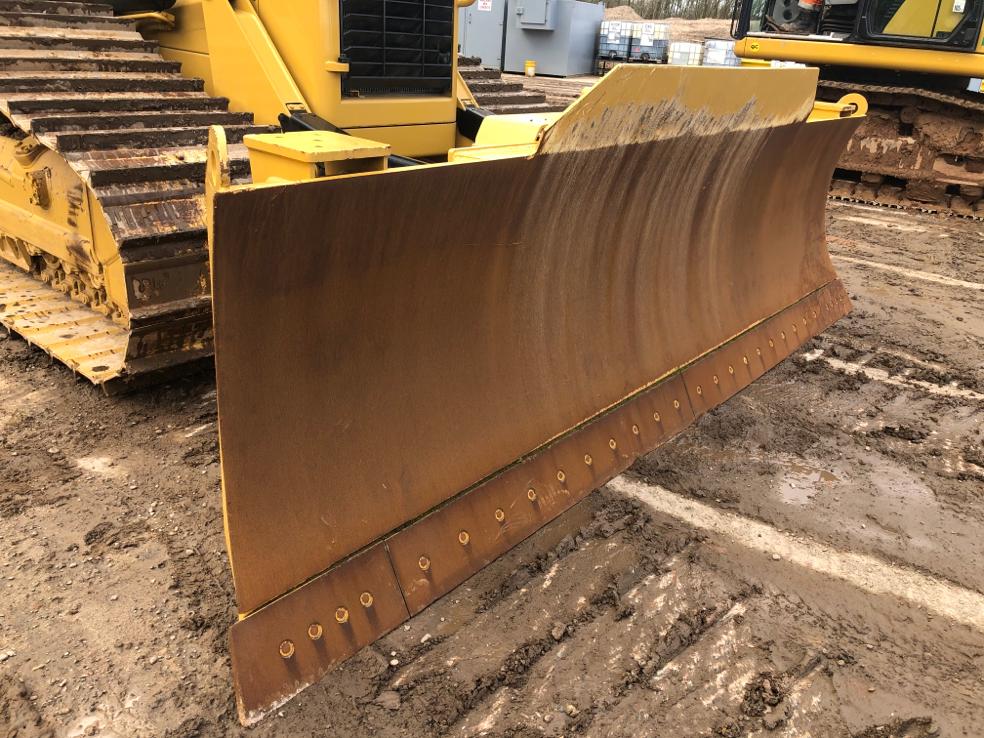

GENERAL BLADE CONDITION
STRAIGHT WITH SLIGHT WEAR
HAVE CUTTING EDGES BEEN TURNED?
YES
CUTTING EDGES CONDITION
135MM - 145MM
SPILL RACK CONDITION
GOOD
FACE, MOLDBOARD
GOOD
C FRAME
BIT OF WEAR IN THE REAR PINS
TRUNIONS WEAR & SHIMS
SLIGHT WEAR
BALL JOINT WEAR
SLIGHT WEAR
TILT RAM, WEAR?
SLIGHT WEAR
SWIVEL RAM, WEAR IN PINS?
SLIGHT WEAR
MAIN LIFT RAMS, WEAR IN PINS?
slight wear
BLADE HEIGHT (MM)
1300mm
BLADE WIDTH (MM)
3900mm
BLADE TYPE
STRAIGHT
PANELS & PAINT/DECALS
ANY DAMAGE TO PANELS?
NO
PAINTWORK
NEW
DIMENSIONS
Length
Width
Height
Measurement With Blade Straight (mm)
5500
3900
3300
Measurement With Blade Turned (mm)
6000
3500
3300
Measurement From Outside To Outside Of tracks (mm)
3000
Measurement With Blade Straight (mm)
Length: 5500
Width: 3900
Height: 3300
Measurement With Blade Turned (mm)
Length: 6000
Width: 3500
Height: 3300
Measurement From Outside To Outside Of tracks (mm)
Length:
Width: 3000
Height:
