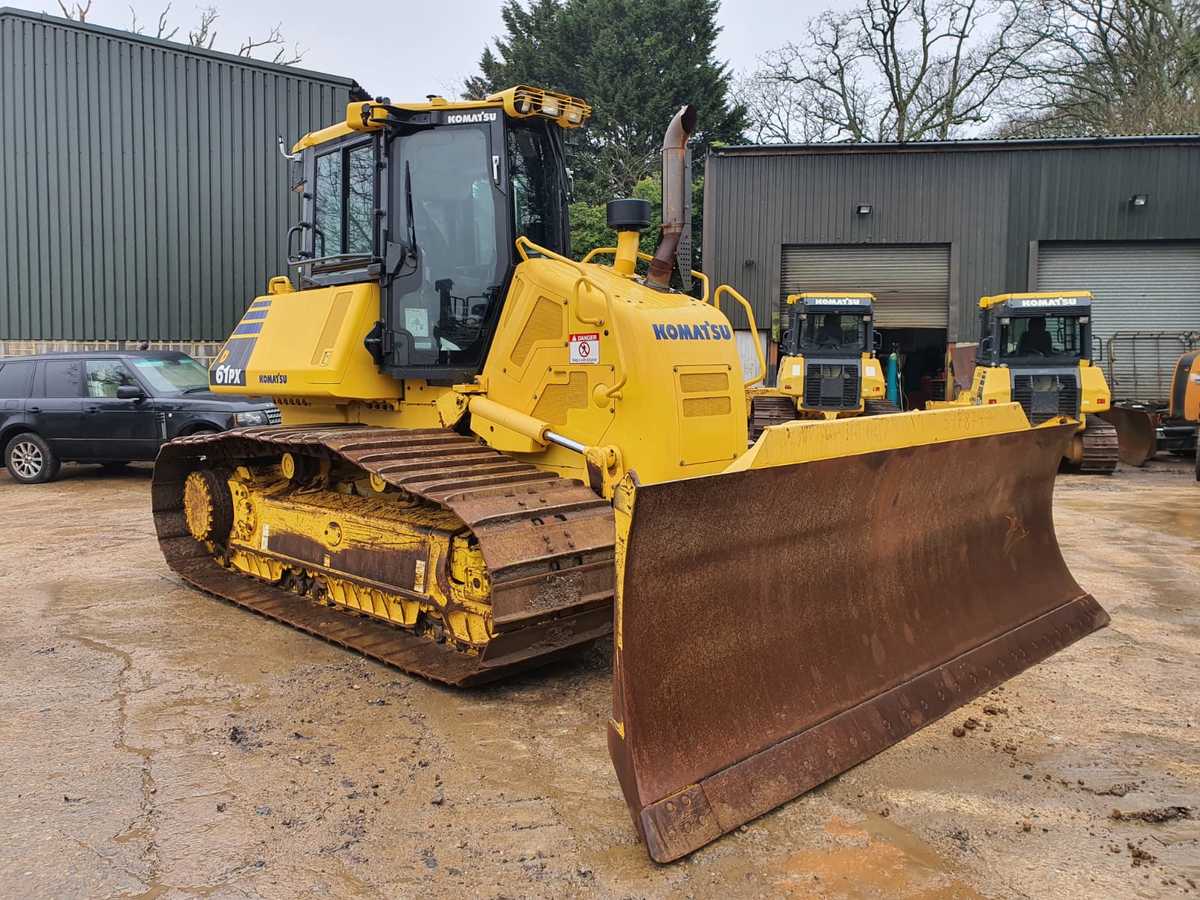

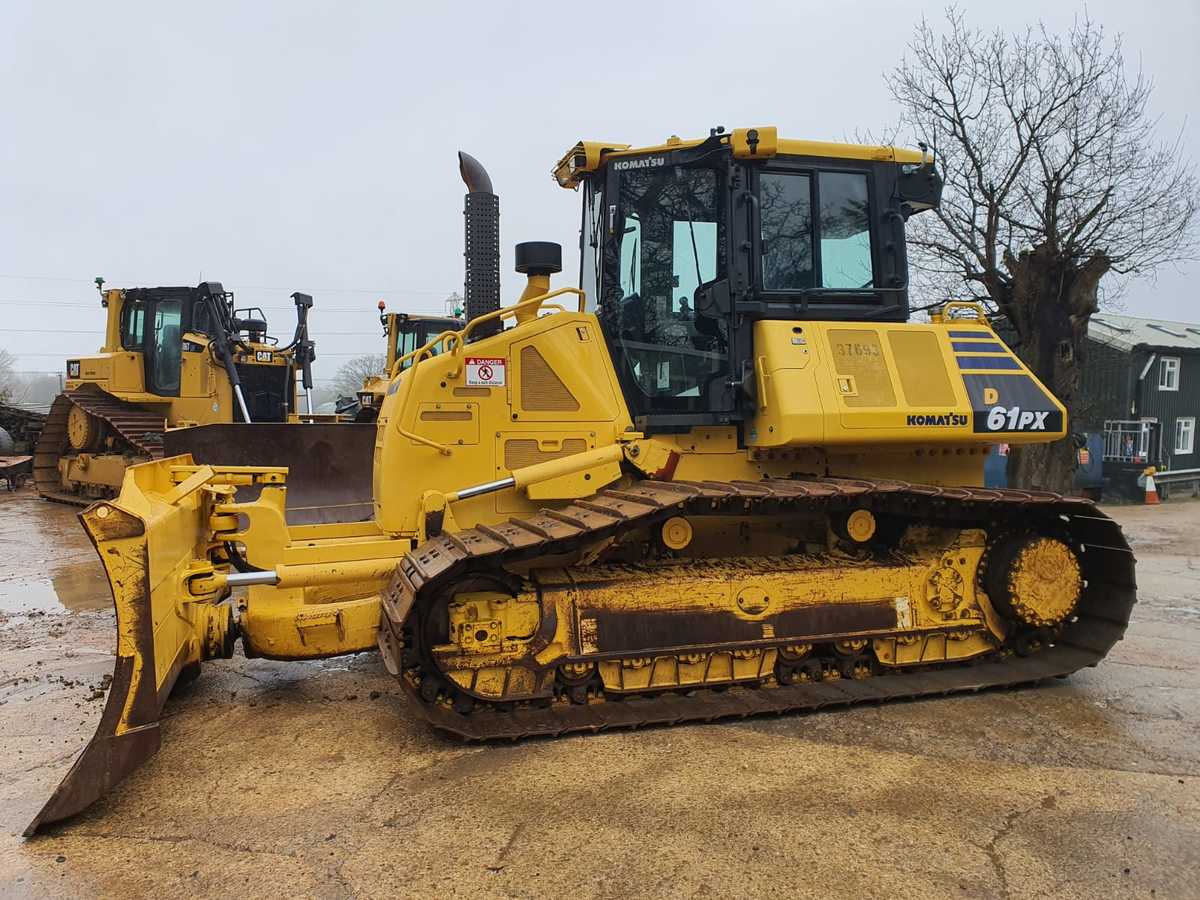

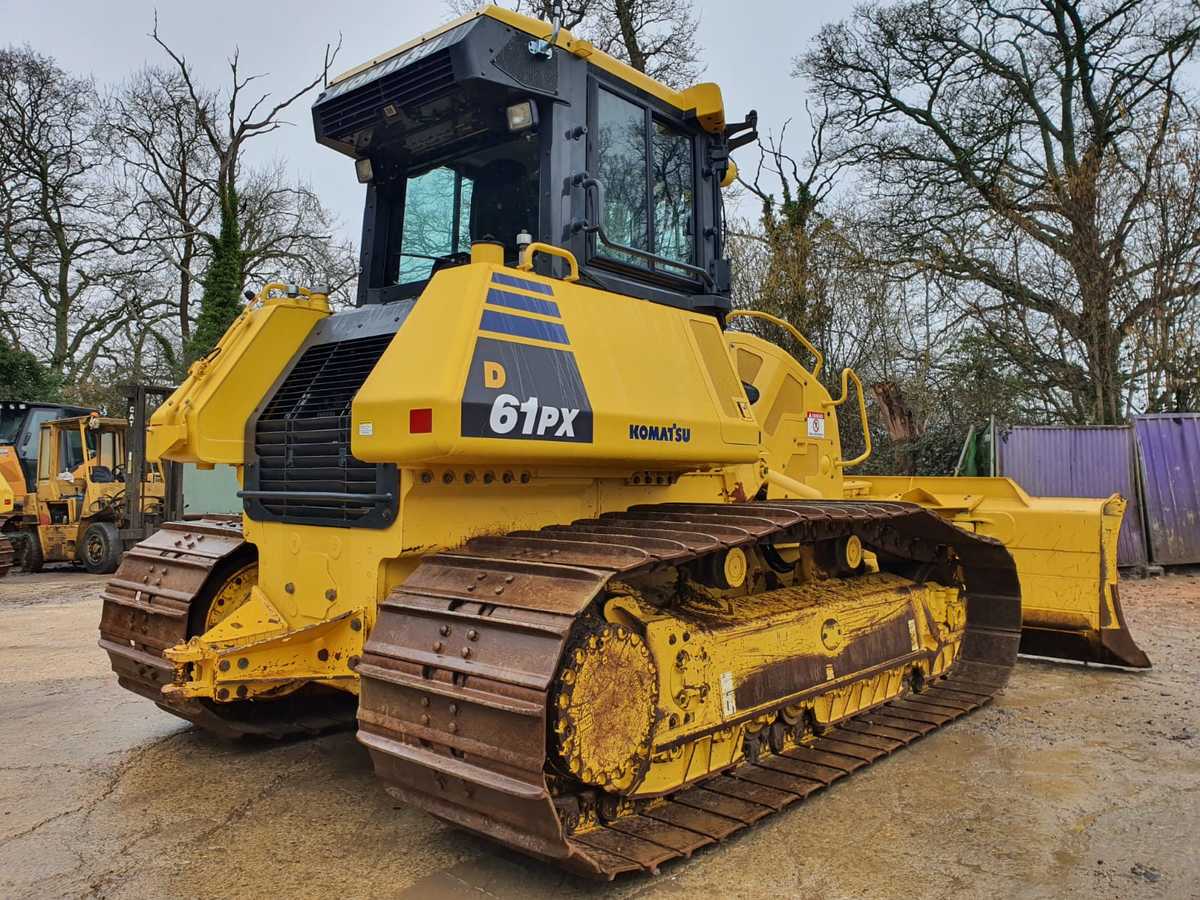

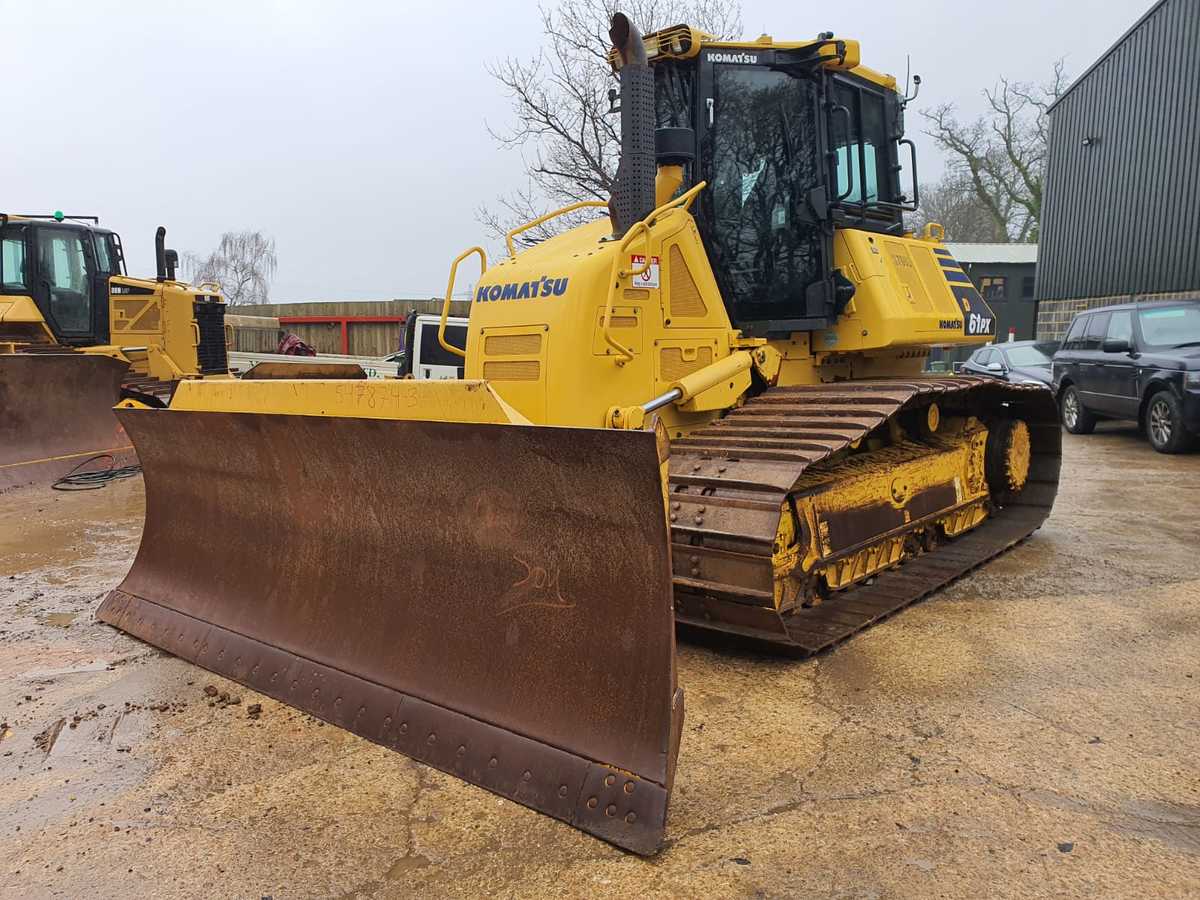

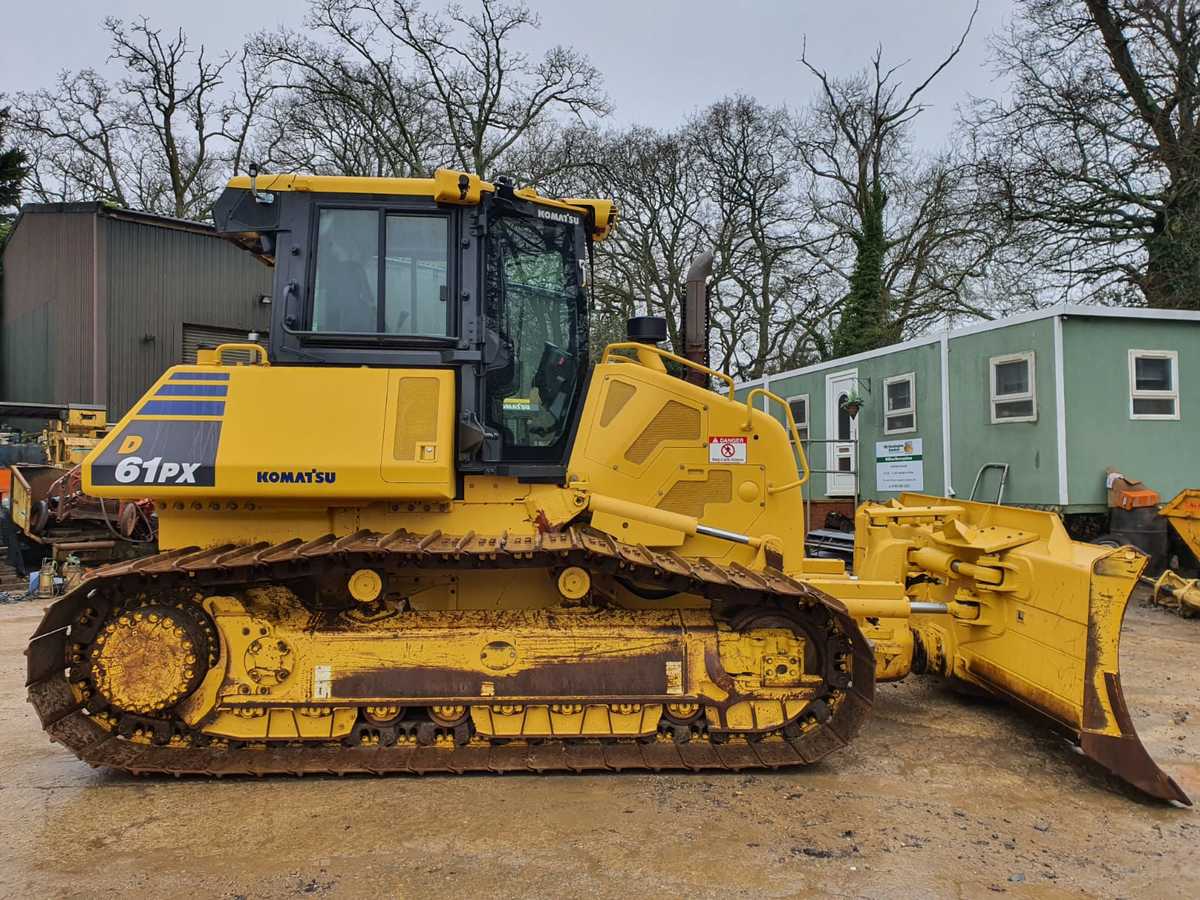

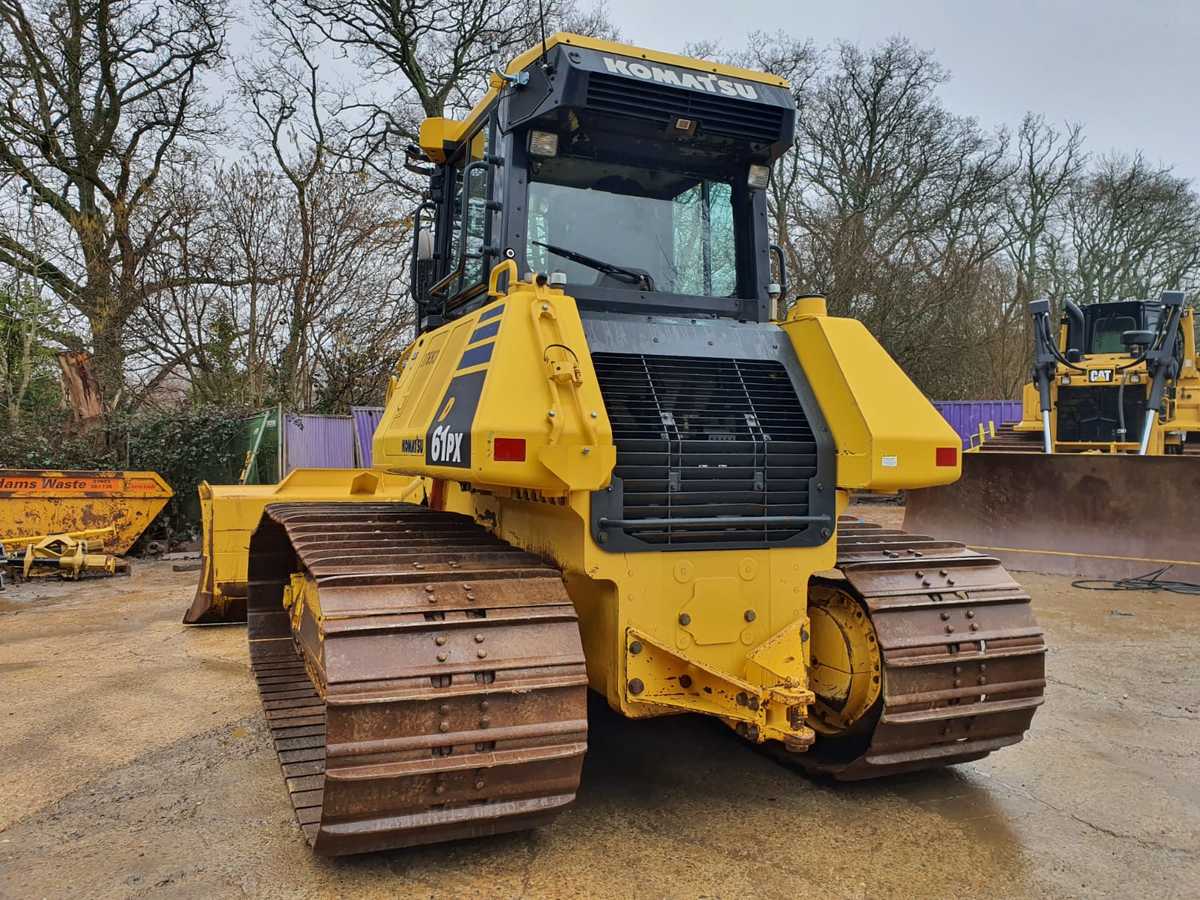

KOMATSU D61PX-24

SOLD

MACHINE KEY DETAILS

Make:

KOMATSU

Model:

D61PX-24

Stock No:

70506

Year:

2016

Hours:

3903

Location:

SOUTHAMPTON

Weight:

HP:

Back to Previous Stock

Download inspection Report Download Images Compare Machine

Request Video Call?

Why not have a video call with the qualified technician that carried out the full inspection so they can run you through all the details of the machine

View Full Inspection Report

ENGINE

BLOW BY

MINIMAL

KNOCKING

GOOD

ANY SMOKE

NONE

OIL OR FUEL LEAKS

NONE APARENT

GENERAL RUNNING CONDITION

SEEMS TO RUN WELL

TRANSMISSION

GEAR CHANGE

STEERING

GOOD, RESPONSIVE

OIL LEAKS

NONE APARENT

IS THE TRANSMISSION NOISY?

NO

CONTROLS

GOOD

GENERAL RUNNING CONDITION

OVERALL GOOD

U/C

SHOE WIDTH (MM)

860

SHOE HEIGHT (MM)

44MM, 90%

SHOES - ANY WEAR IN TRAILING EDGE

MINIMAL

RAIL HEIGHT

119MM, 90%

ANY SIGNS OF LINK FAILURE

NOTHING STANDS OUT

AVERAGE DIAMETER OF PINS AND BUSHINGS

64MM, 90%

HAVE PINS BEEN TURNED ON CHAINS?

NO

SPROCKETS

15MM HEADS. GOOD CONDITION, NO UNEVEN WEAR

LEFT SIDE FRONT IDLER

VISUAL ONLY, GREAT CONDITION. 90%

RIGHT SIDE FRONT IDLER

VISUAL ONLY, GREAT CONDITION. 90%

LEFT SIDE 1ST TOP ROLLER

L/H: 172MM, R/H: 173MM. 80%

LEFT SIDE 2ND TOP ROLLER

L/H: 175MM, R/H: 172MM. 80%

RIGHT SIDE 1ST TOP ROLLER

L/H: 172MM, R/H: 172MM. 80%

RIGHT SIDE 2ND TOP ROLLER

L/H: 174MM, R/H: 172MM. 80%

BOTTOM ROLLER 1

VISUAL ONLY, 75 - 80%

BOTTOM ROLLER 2

VISUAL ONLY, 75 - 80%

BOTTOM ROLLER 3

L/H: 195MM, R/H: 192MM. 75 - 80%

BOTTOM ROLLER 4

L/H: 196MM, R/H: 196MM. 75 - 80%

BOTTOM ROLLER 5

L/H: 184MM, R/H: 184MM. 40%

BOTTOM ROLLER 6

VISUAL ONLY, 75 - 80%

BOTTOM ROLLER 7

VISUAL ONLY, 75 - 80%

BOTTOM ROLLER 8

L/H: 195MM, R/H: 194MM. 75 - 80%

CAB

CAB MOUNTS - ANY WEAR?

NO

ANY WIRING FOR LASER SYSTEM?

NO

BACK UP ALARM

LOUD AND CLEAR

BATTERY ISOLATOR SWITCH

MANUAL AND ELECTRIC

LIGHTS

ALL WORKING

WIPERS

ALL WORKING INCLUDING THE WASHERS

HEATER

OK HEAT ONCE WARMED

A/C

NICE AND COLD

SEAT CONDITION

SEAT BACK TORN, WORKS AS SHOULD

CLADDING CONDITION

GOOD CONDITION

FLOOR MAT

DIRTY BUT NOT DAMAGED

SEAT BELT

WORKING AS SHOULD

MIRRORS

REAR VIEW ONLY

HORN

LOUD AND CLEAR

CAB MOUNTS

GOOD MOUNTS

CAB GLASS CONDITION

FRONT PANEL HAS GLUE OVER IT

CAB GLASS ANY CRACKS

NO CRACKS

ANY PERSPEX FITTED

NO

STEPS AND GRAB HANDLES SECURE?

ALL PRESENT AND STRAIGHT

BLADE

MAIN LIFT RAMS, WEAR IN PINS?

L/H: TOP: 2MM, BOTTOM: 1MM. R/H: TOP: 2MM, BOTTOM: 3MM

SWIVEL RAM, WEAR IN PINS?

L/H: TOP: 3MM, BOTTOM: 2MM. R/H: TOP: 3MM, BOTTOM: 3MM

STAY RAM, WEAR?

L/H: 2MM, R/H: 2MM

BALL JOINT WEAR (MM)

5 - 6MM

EQUALISER BAR WEAR

L/H: 3MM, MIDDLE: 6MM, R/H: 4MM

C FRAME (PAT BLADE)

L/H: 4MM, R/H: 4MM

FACE, MOLDBOARD

GOOD CONDITION

SPILL RACK CONDITION

STRAIGHT, NO DAMAGE

CUTTING EDGES CONDITION (MM)

30MM LEFT

HAVE CUTTING EDGES BEEN TURNED?

NO

GENERAL BLADE CONDITION

GOOD

PANELS & PAINT/DECALS

ANY DAMAGE TO PANELS?

NO DAMAGE

PAINT CONDITION

SLIGHTLY FADED

ANY AREAS REPAINTED

DON'T THINK SO

ANY RUST PATCHES

MINIMAL, NORMAL PATCHES

CONDITION OF DECALS

PRETTY GOOD ALL AROUND

DIMENSIONS

Length

Width

Height

Blade Straight

5800mm

3890mm

3360mm

Blade Turned

6660mm

3430mm

3360mm

Measurement From Outside To Outside Of tracks

3000mm

Blade Straight

Length: 5800mm

Width: 3890mm

Height: 3360mm

Blade Turned

Length: 6660mm

Width: 3430mm

Height: 3360mm

Measurement From Outside To Outside Of tracks

Length:

Width: 3000mm

Height:
